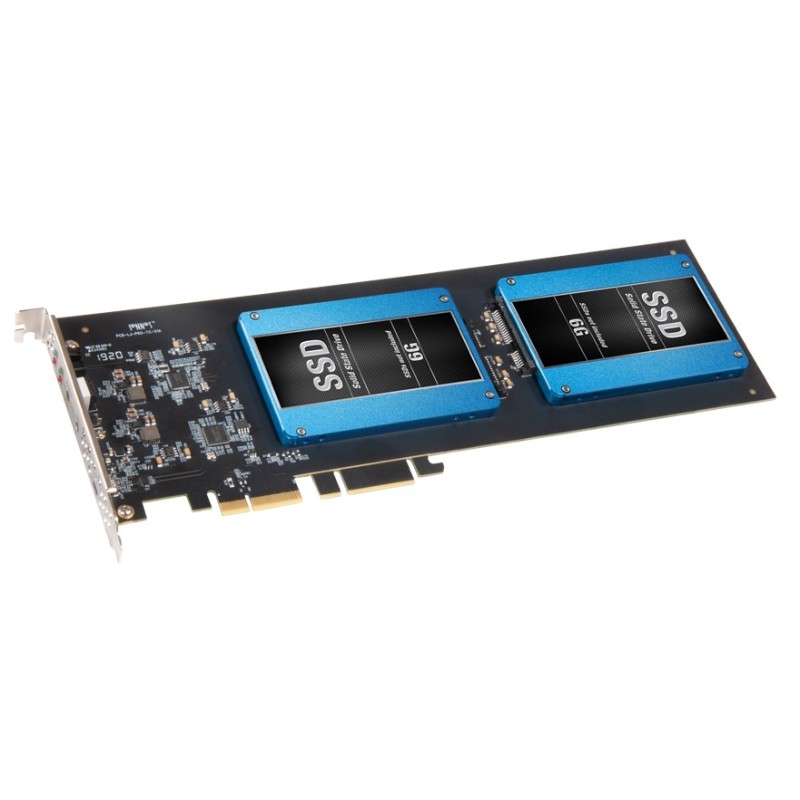

Sonnettech Fusion Dual 2.5-inch SSD RAID

Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller, plus 10Gbps USB-C port • Add your own SSDs.

If you need faster, high-capacity internal storage for your desktop computer or server, 2.5-inch SATA SSDs are the cost-effective choice. Sonnet’s Fusion™ Dual 2.5-inch SSD RAID PCIe card enables you to upgrade your system in a flash, mounting one or two SSDs (sold separately) with up to 8TB capacity(1) in a single full-length PCIe card slot, with no power or data cables, adapters, or mounting trays required.



Compatibility

Mac Compatibility

- Mac Pro 5,1 (Mid 2010 & Mid 2012) with available full-length PCIe slot
- Mac Pro 7,1 (2019)
- macOS 10.10.5, 10.12.6+(4)
- macOS Catalina compatible
- Note: not compatible with macOS 10.11

Windows Compatibility

- Computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred)
- Windows 10, 8.1, 7
- Windows Server 2016, 2012, 2008 (64-bit editions)

Linux Compatibility

- Computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred)
- Linux Kernel 5.0+

Thunderbolt Compatibility

- Mac computer with Thunderbolt 2 or Thunderbolt 3 ports via a Thunderbolt 2 or 3 to PCIe card expansion system with available full-length PCIe slot
- Windows computer with Thunderbolt 3 ports via a Thunderbolt 3 to PCIe card expansion system with available full-length PCIe slot
- Linux computer with Thunderbolt 2 or Thunderbolt 3 ports via a Thunderbolt 2 or 3 to PCIe card expansion system with available full-length PCIe slot

Hardware

Form Factor

- Full-height, full-length PCIe card
- PCI Express 3.0 x4
- Two SATA for 2.5-inch SSDs
- One USB-C port (10Gbps USB 3.2 Gen 2)
- SATA 6 Gb/s

Supported Drive Configurations

- RAID 0
- RAID 1
- Span
- JBOD

Cables Supported

- USB-C 10Gbps
- USB-C 5Gbps
- Thunderbolt 3 40Gbps (0.5- and 0.7-meter only)
- Thunderbolt 3 20Gbps
